Entra ID Setup Guide

This guide provides a step-by-step tutorial on creating an application in Azure Entra ID and configuring the necessary permissions.

First, sign in to the Azure portal and navigate to Microsoft Entra ID under the Manage section.

In the left sidebar, navigate to App registrations.

Navigate to the App registrations page, where you can view all existing applications, including those you have created. Click New registration, enter a Name for your application, and proceed with the registration.

After registering the application, you will be redirected to the application overview page, where you can find the Client ID and Tenant ID. Now, navigate to the API permissions section.

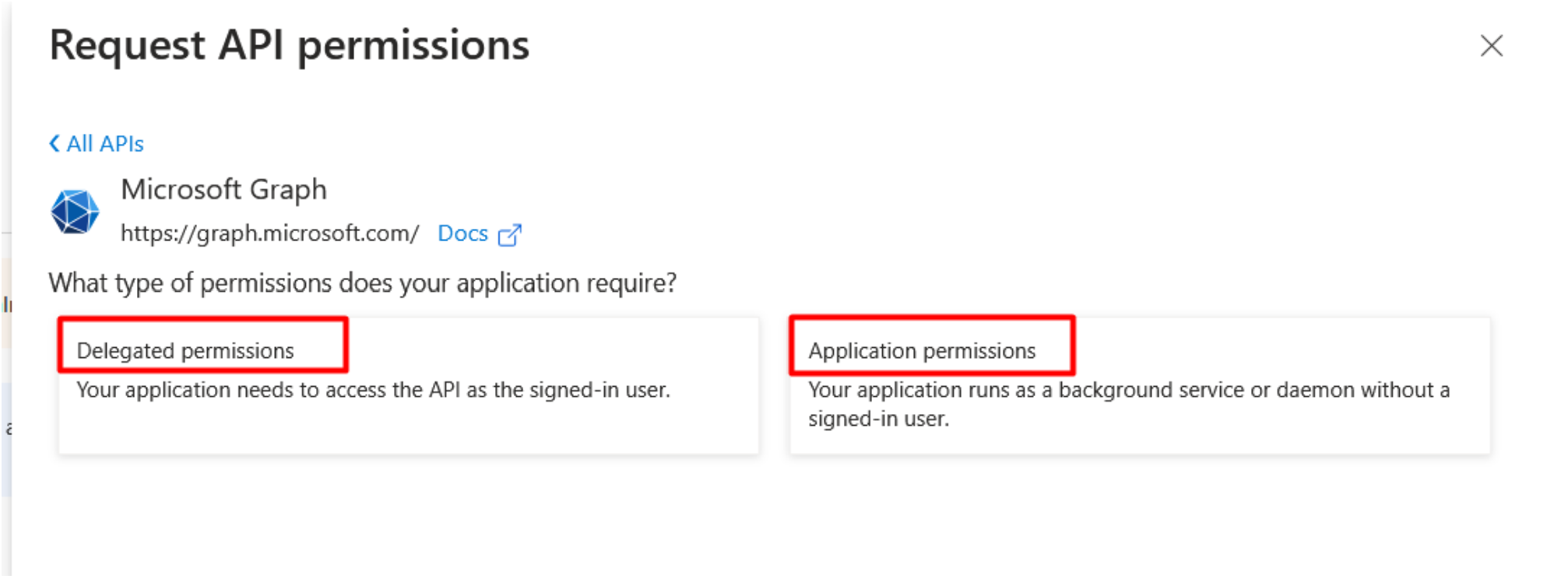

The application requires specific permissions to function properly. There are two types of permissions:

• Delegated permissions – Used when the application acts on behalf of a signed-in user (requires user authentication).
• Application permissions – Used when the application runs without user interaction, such as with client-secret authentication (required for scheduled tasks).

Please add both Delegated and Application permissions to ensure full functionality.

Name	Type	Description
AuditLog.Read.All	Delegated	Read audit log data
AuditLog.Read.All	Application	Read all audit log data
AuditLogsQuery-Entra.Read.All	Delegated	Read audit logs data from Entra (Azure AD) workload
AuditLogsQuery-Entra.Read.All	Application	Read audit logs data from Entra (Azure AD) workload
AuditLogsQuery.Read.All	Delegated	Read audit logs data from all services
AuditLogsQuery.Read.All	Application	Read audit logs data from all services
Contacts.ReadWrite	Delegated	Have full access to user contacts
Contacts.ReadWrite	Application	Have full access to user contacts
Directory.AccessAsUser.All	Delegated	Access directory as the signed in user
Directory.Read.All	Delegated	Read directory data
Directory.Read.All	Application	Read directory data
Directory.ReadWrite.All	Delegated	Read and write directory data
Directory.ReadWrite.All	Application	Read and write directory data
Group.Create	Application	Create groups
Group.Read.All	Application	Read all groups
Group.Read.All	Delegated	Read all groups
Group.ReadWrite.All	Application	Read and write all groups
Group.ReadWrite.All	Delegated	Read and write all groups
ProfilePhoto.Read.All	Delegated	Read profile photo of a user or group
ProfilePhoto.Read.All	Application	Read profile photo of a user or group
ProfilePhoto.ReadWrite.All	Delegated	Read and write profile photo of a user or group
ProfilePhoto.ReadWrite.All	Application	Read and write profile photo of a user or group
User.EnableDisableAccount.All	Delegated	Enable and disable user accounts
User.EnableDisableAccount.All	Application	Enable and disable user accounts
User.Export.All	Delegated	Export user’s data
User.Export.All	Application	Export user’s data
User.ManageIdentities.All	Delegated	Manage user identities
User.ManageIdentities.All	Application	Manage all users’ identities
User.Read	Delegated	Sign in and read user profile
User.Read.All	Delegated	Read all users’ full profiles
User.Read.All	Application	Read all users’ full profiles
User.ReadBasic.All	Delegated	Read all users’ basic profiles
User.ReadBasic.All	Application	Read all users’ basic profiles
User.ReadWrite	Delegated	Read and write access to user profile
User.ReadWrite.All	Delegated	Read and write all users’ full profiles
User.ReadWrite.All	Application	Read and write all users’ full profiles

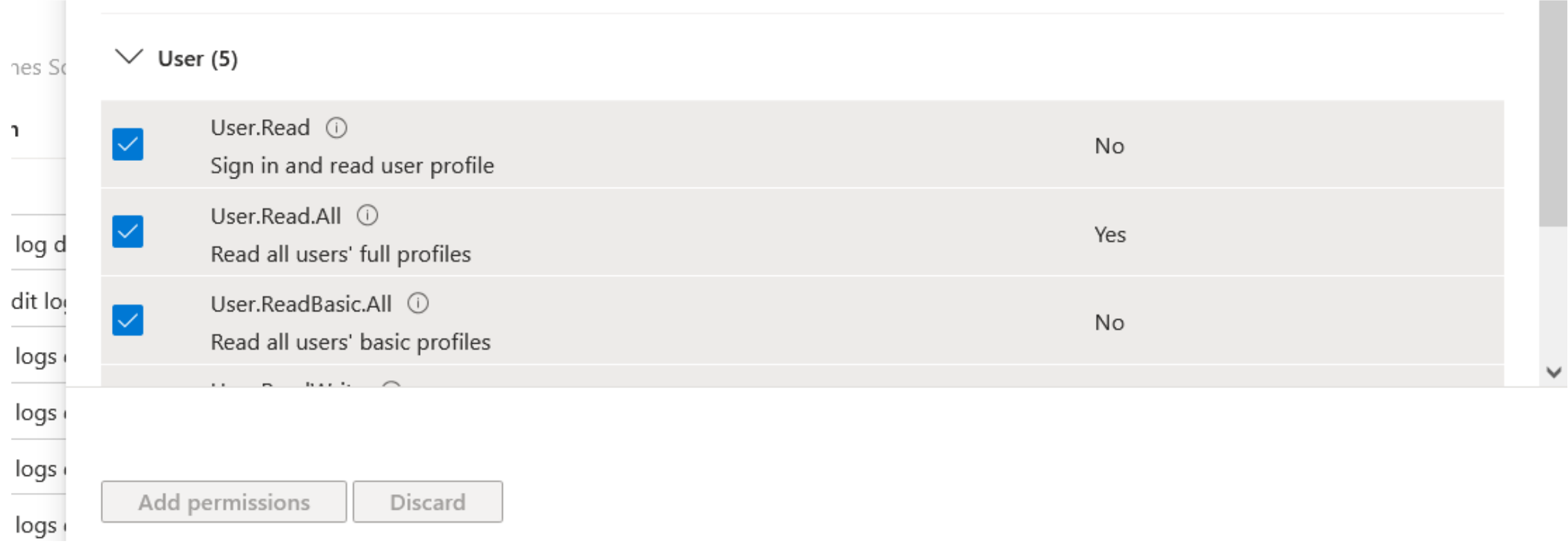

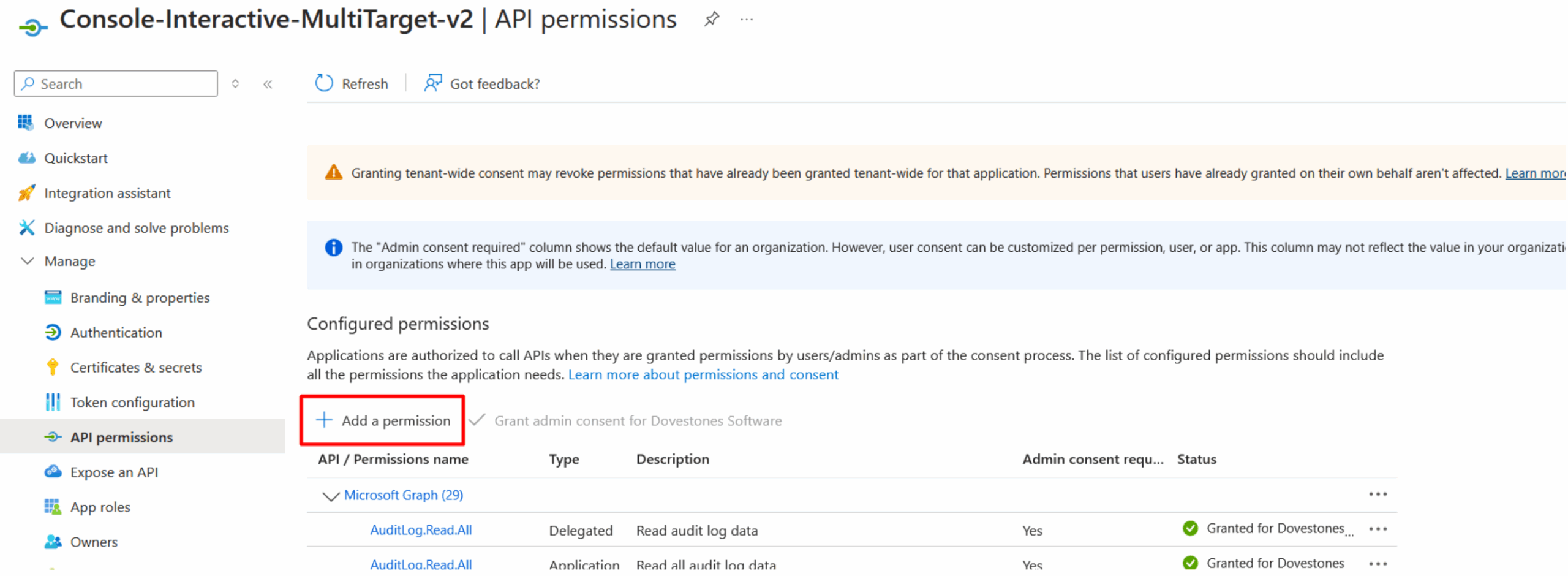

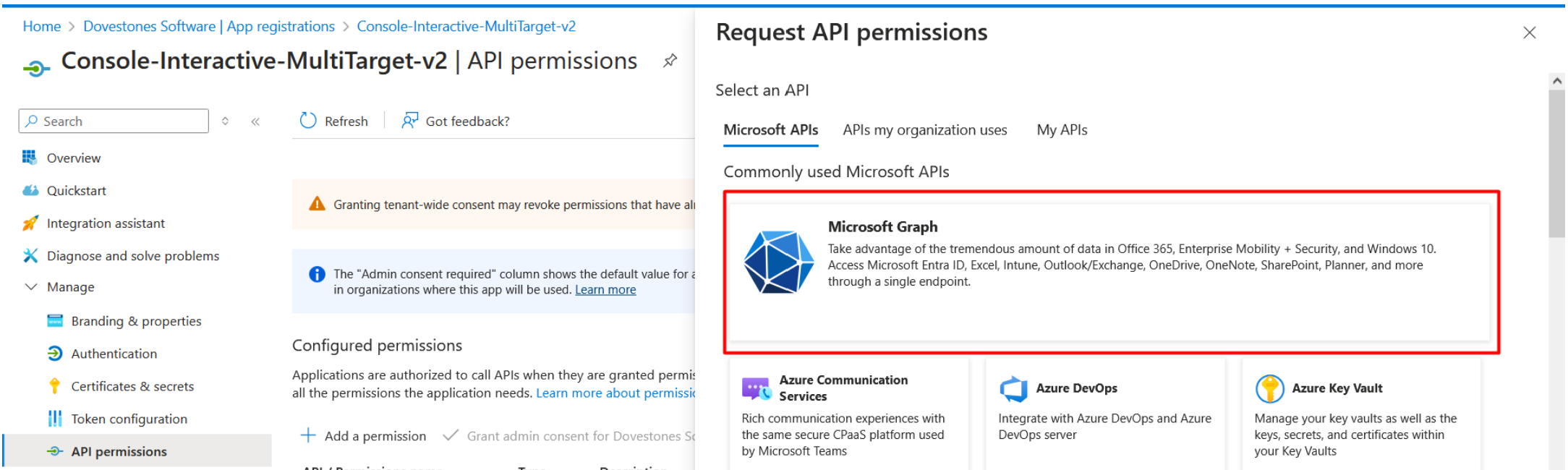

All the listed permissions are essential for the correct operation of the application. Please ensure that you add each of them in the API permissions section. Click “Add a permission”, then select Microsoft Graph to view all available permissions for Microsoft Graph.

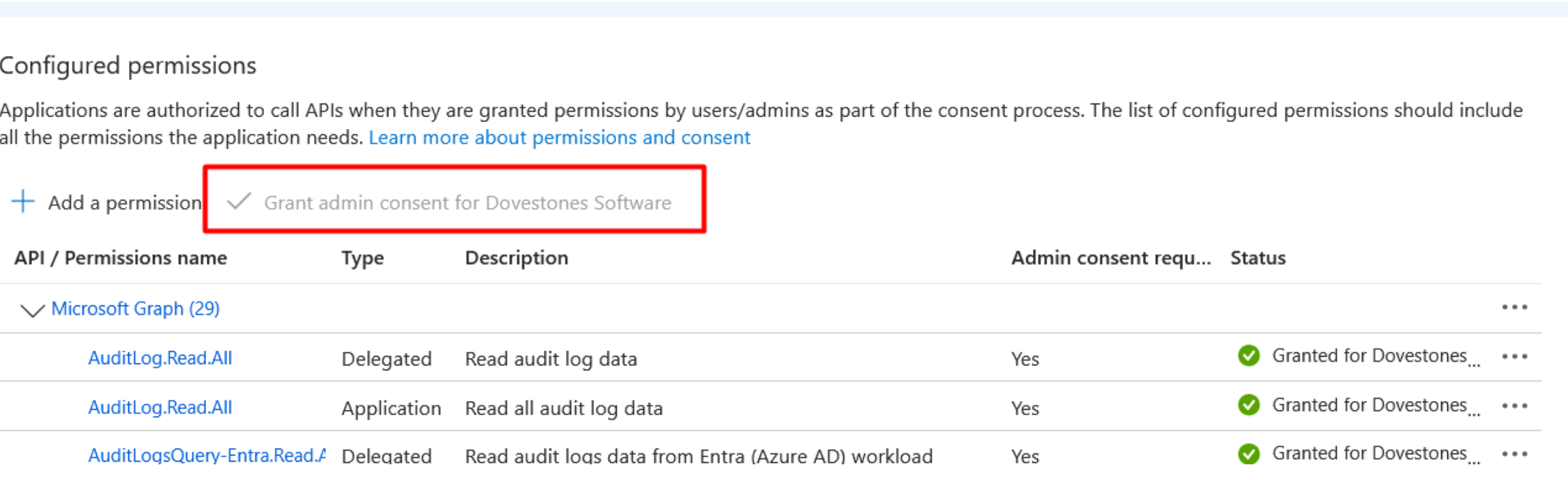

Some permissions require administrator consent for approval. These permissions can be granted by an administrator by clicking the “Grant admin consent” button in the API permissions section.

Now, you can use the created application with Client (Application) ID and Tenant (Directory) ID. However, to complete the setup, you also need to configure a client secret for your application.

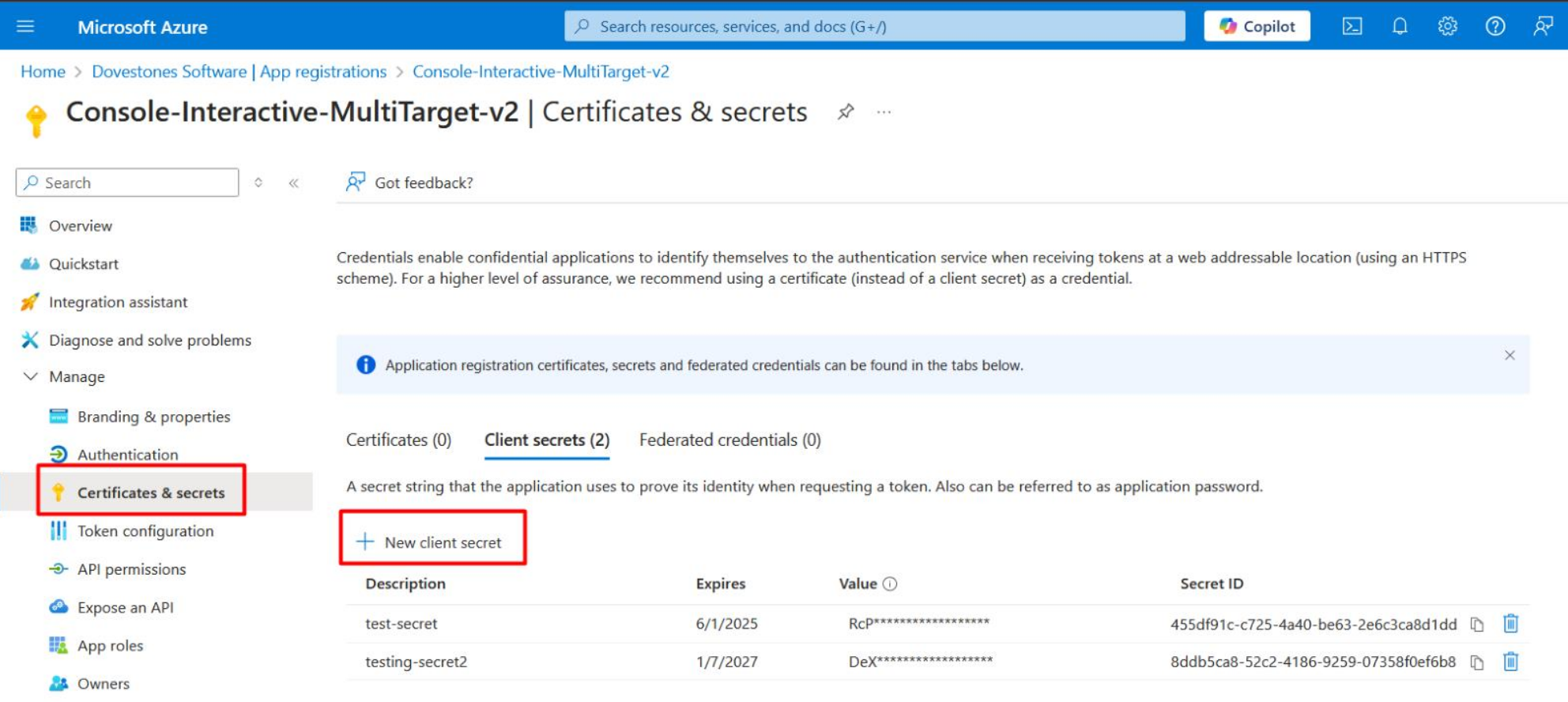

1. In the left sidebar menu, navigate to Certificates & secrets.
2. Click “New client secret” to generate a new secret.

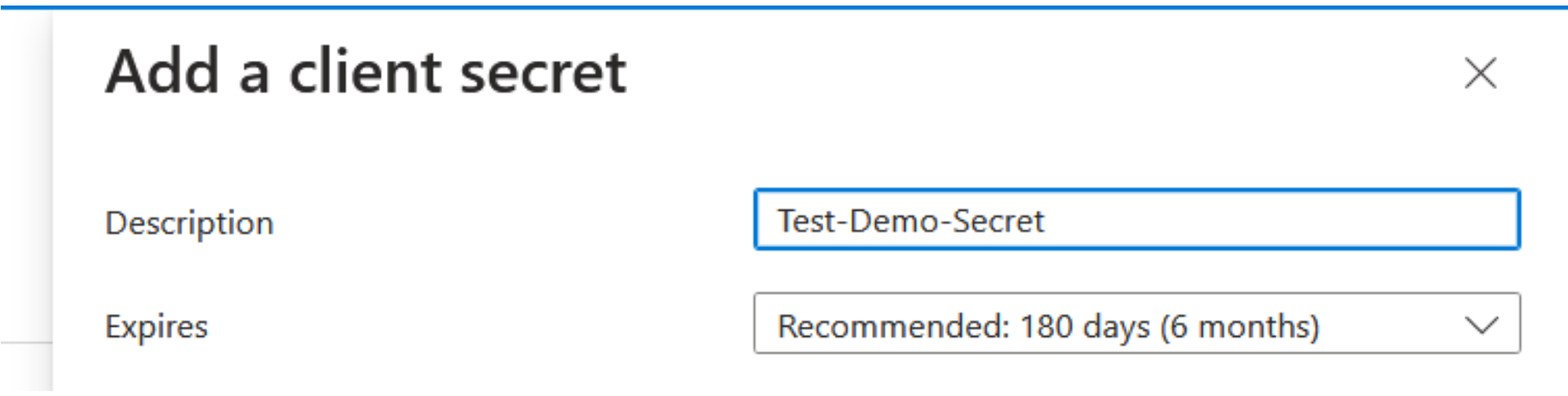

Enter a description for the client secret, select an expiration date, and then click “Add” to generate the secret.

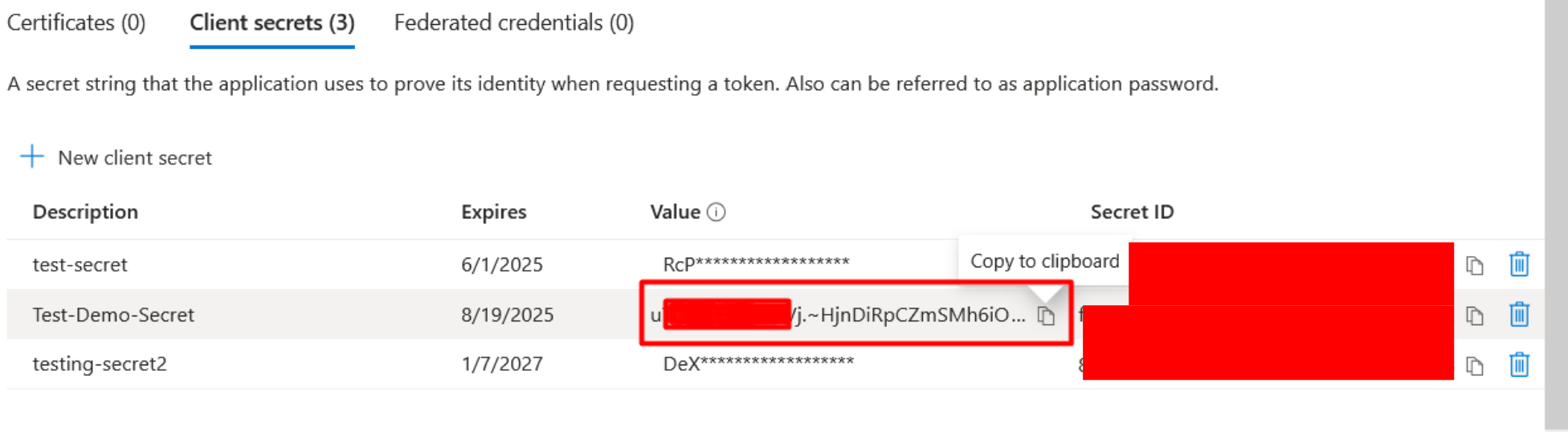

Copy the client secret value and store it securely, as it will no longer be visible after you leave or refresh the page. Make sure to save it immediately after creation.

Configure Redirect URI for Entra ID App Registration.

1. Open Azure Portal – Go to https://portal.azure.com and sign in with an admin account.
2. Navigate to App Registrations:
   – Go to Azure Entra ID;
   – In the left menu, click App registrations;
   – Click “Owned applications” or “All applications”;
   – Select your application (match by Client ID or Name);
3. Open the Authentication Blade – In the selected app’s menu, click Authentication.

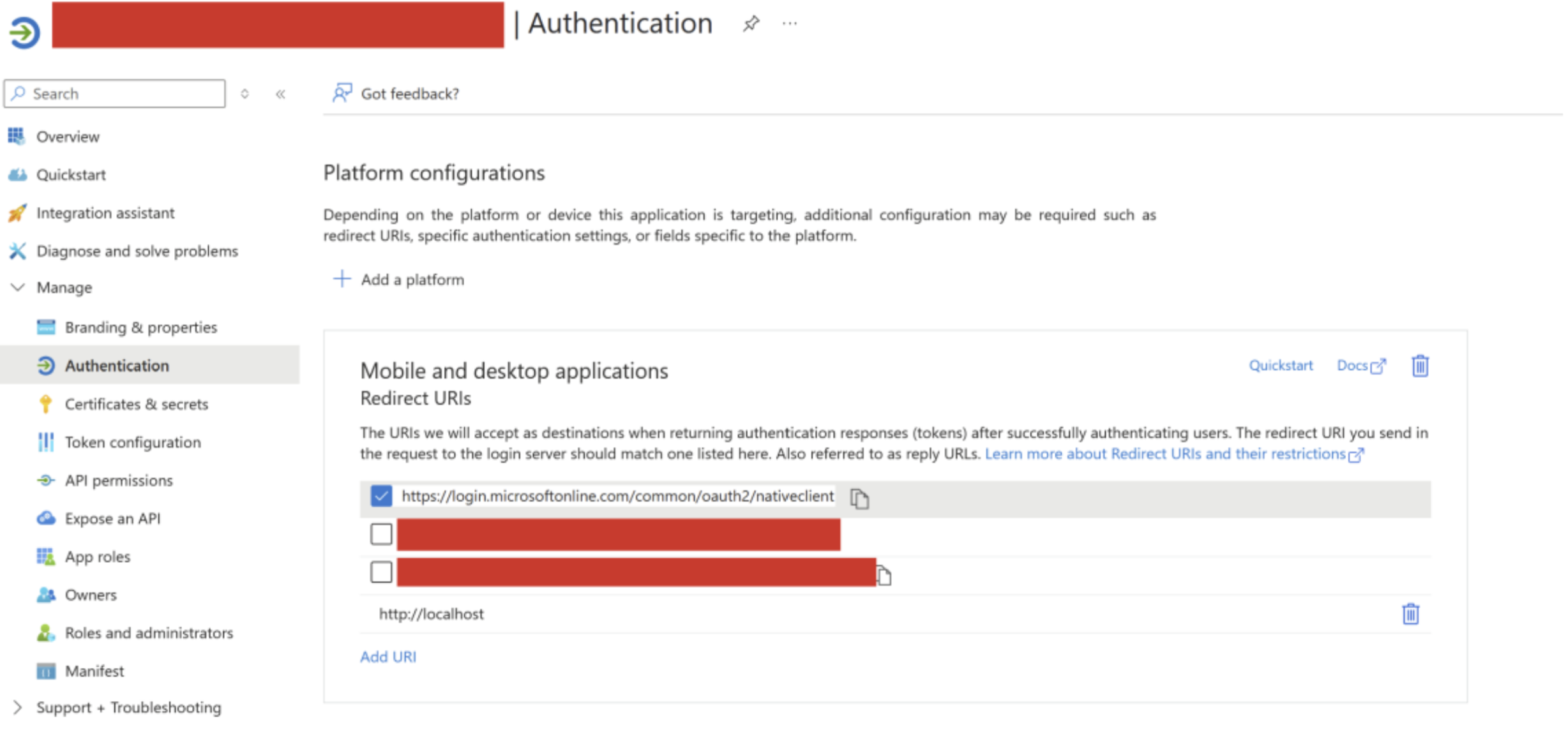

4. Add Redirect URI:
   – Under Platform configurations, click “Add a platform”;
   – Choose Mobile and desktop applications;
   – In the list of recommended redirect URIs, check (or add) “https://login.microsoftonline.com/common/oauth2/nativeclient”;
5. Save the Configuration – Click Save at the top of the page.

That’s it – your application is now set up. You can proceed with integrating it into your application and testing its functionality!
